RPI Zero W Game console shield
### DESCRIPTION
RPI ZeroW shield with joystick, 4 press buttons, OLED Screen and 18650 battery
### TECHNICAL DETAILS / COMPONENTS
This is a shield to build a prototype of game console.
### LEARN / TOPIC / BUILD INSTRUCTIONS
Components
Dual axis Joystick https://fr.aliexpress.com/item/Free-shipping-10pcs-dual-axis-XY-joystick-module-PS2-rocker-game-joystick-module-for-arduino-KY/1997457550.html
SMD Buttons
ON/Off switch
MCP3008
Oct 27,2017
597 views
RPI Zero W Game console shield

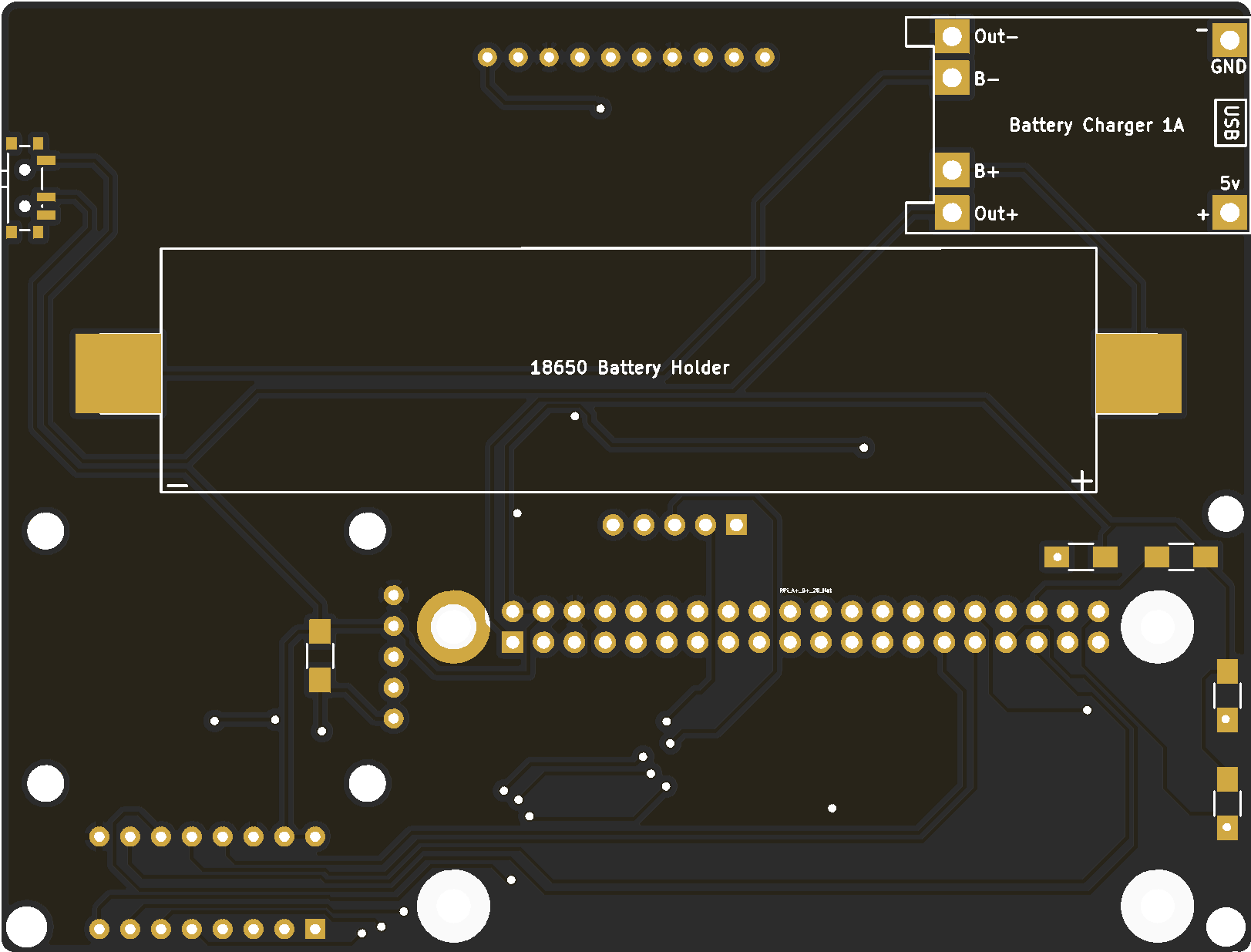

2 Layers PCB 103 x 78.2 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen
