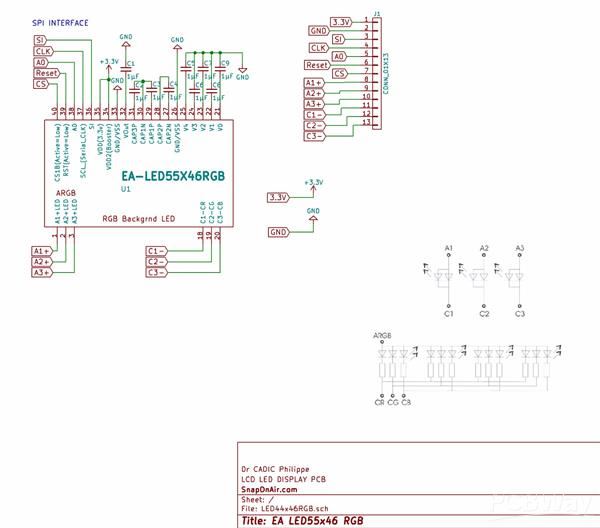

EA DOGS102W-6, 55x46 RGB LCD Display holding PCB for ESP
### DESCRIPTION
This board is a development board for prototyping, using EA DOG128 LCD displays in Arduino, ESP32 and ESP8266 projects.
### TECHNICAL DETAILS / COMPONENTS
* HIGH-CONTRAST LCD SUPERTWIST DISPLAY (STN AND FSTN) WITH 15μm DOT GAP
* OPTIONAL LED BACKLIGHTS IN VARIOUS COLORS
* 128x64 PIXELS (CORRESPONDS TO 8x21 CHARACTERS OR 4x10 LARGE CHARACTERS)
* ST 7565R CONTROLLER WITH SPI (4-WIRE) INTERFACE
* POWER SUPPLY: SINGLE SUPPLY 3.0V TO 3.3V (TYPICALLY 270μA)
* NO ADDITIONAL VOLTAGES REQUIRED
* OPERATING TEMPERATURE RANGE -20°C TO +70°C (STORAGE -30°C TO +80°C) * LED BACKLIGHTING 5mA TO 40mA * NO MOUNTING REQUIRED: SIMPLY SOLDER ONTO PCB
### LEARN / TOPIC / BUILD INSTRUCTIONS
http://www.lcd-module.com/eng/pdf/grafik/dogm128e.pdf
EA DOGS102W-6, 55x46 RGB LCD Display holding PCB for ESP
