Falcon PDB

### DESCRIPTION ( Introduce yourserlf and your project)

Hi I am a 19yr old student from sri lanka and I have been a electronic enthusiast my whole life.Recently I got into FPV drone racing.And I was sick of the low quality PDB(power Distribution Boards) that really limited the perfomences of a quadcopter.So I decided to design one of my own.So I started to design the perfect PDB.This was very unique and litereally surpased every other PDB I have tested in terms of Power and accuracy and thermal perfomences.So USING PCB WAY SERVICE I ordered a alot of revisions and in the final prototype I hand assembled 5 PDBs.And I posted on Facebook.I imideately sold out all prototypes and more people was interested.But I couldn't mass produce a lot of PDBs becouse bieng a broke kid I couldn't afford a lot of money for the PCB way assembly and manufacturing.

### TECHNICAL DETAILS (With project photos)

It took several attempts to make this work perfectly and and I failed a lot.But I kept redesigning.

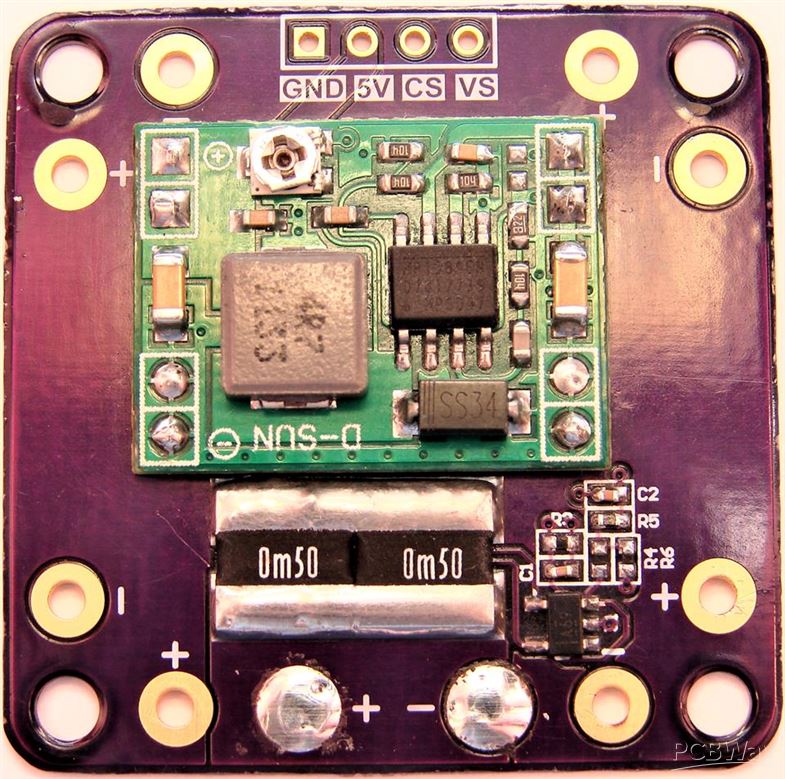

This is Revision 0.1

And this is Revision 0.2

And this is Revision 0.3

And this is the final Revision 0.4 that I sold but I have already desinged Rev 0.5 with few changes.

Here are the technical specs of the final revision

1. Upto 26V(6S lipo)


2.


3. upto 240A current capacity

4.


5. Current monitoring with absolute accuracy using 0.1% passives

6.


7. Voltage monitoring with very precise 0.1% passives

8.


9. 5V super clean voltage output with upto 1.5A.

10.


11. Adapting the dronecode specs JST GH connectors with self locking mechanism with the reliability of a solder joint and the convenience of a connector. Thought out layout with 6 motor outs and clean wiring.

12.

13. Built in TVS diode to surpress transients and keep the power rails super clean.


This project is already well recieved in our hobby community.Here my facebook page https://www.facebook.com/xaeromatics/

### Words to PCBWay

I was blown away to here that a big company like you sponsoring people without any ties.That why I chose you guys over any other and I keep suggesting  you to my other electronic savy freinds.Its amazing to see that company like aknowledge small guys and help them out so for that I would like to thank you on behalf of every electronic enthusiast who can't afford this hobby.

I would like to setup a drone development company in the future and I am already working on it.So thats why I would like you to kindly support me in my quest.Not just that.I want to build a relationship with you guys in developing my future projects.Thank you so much for even considering me for your sponsorship and I am a big time customers of yours and I really like your site and your company.So even if you don't sponsor me I want to thank each and every body in your company that makes amazing things happen.

Thank you

Your sincerly customer

Vimanse Dissanayake.
