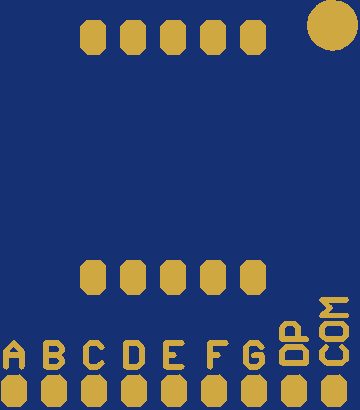

Top Solder Mask
Top Overlay
Top Copper Layer
Bottom Solder Mask
Bottom Copper Layer
Bottom
Top
Description
Display_7s
### PCB para display de 7 segmentos, ánodo o cátodo común.
Tiene terminales para usar en protoboard y resistencias para limitar la corriente de cada led.
### Usa resistencias SMD 0805 de 330 Ohms.
Feb 07,2018
197 views
Display_7s
2 Layers PCB 27 x 24 mm FR-4, 0.8 mm, 1, HASL with lead, Blue Solder Mask, White silkscreen
197
0
0
Published: Feb 07,2018
Download Gerber file 2
PCBWay Donate 10% cost To Author
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
