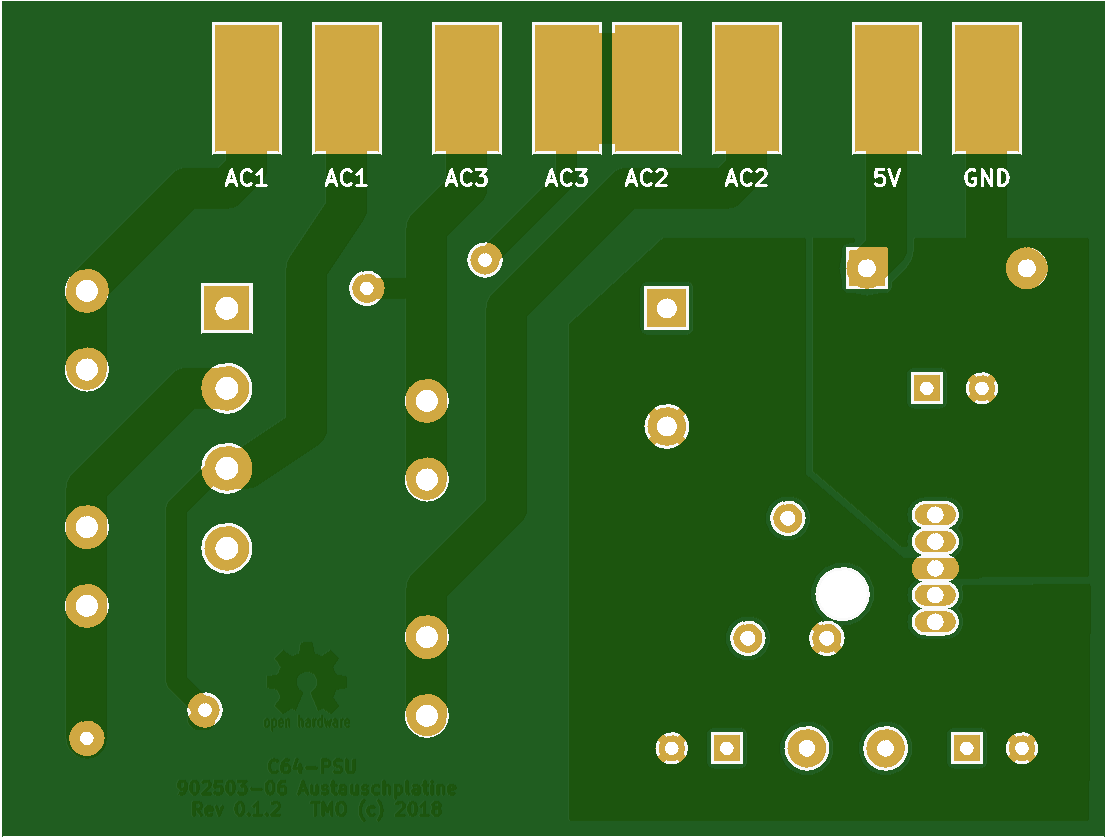

C64-PSU 902503-06 Austauschplatine 0.1.2
### DESCRIPTION
Replacement for the C64-PSU 902503-06 Rev 0.1.2
### TECHNICAL DETAILS / COMPONENTS
Schaltregler Traco TSR 3-1250 oder Murata OKR-T/3-W12
### LEARN / TOPIC / BUILD INSTRUCTIONS
C5, C6, C7 nur optional fuer den Murata Regler
C5: 22uF 25V low ESR Keramik SMD 0805
C6: 1uF 16V low ESR Keramik SMD 0805
C7: 22uF 16V low ESR Keramik SMD 0805
Alle anderen Bauteile entsprechen der Rev 0.1
