200 Watts Mono Audio Amplifier DIY

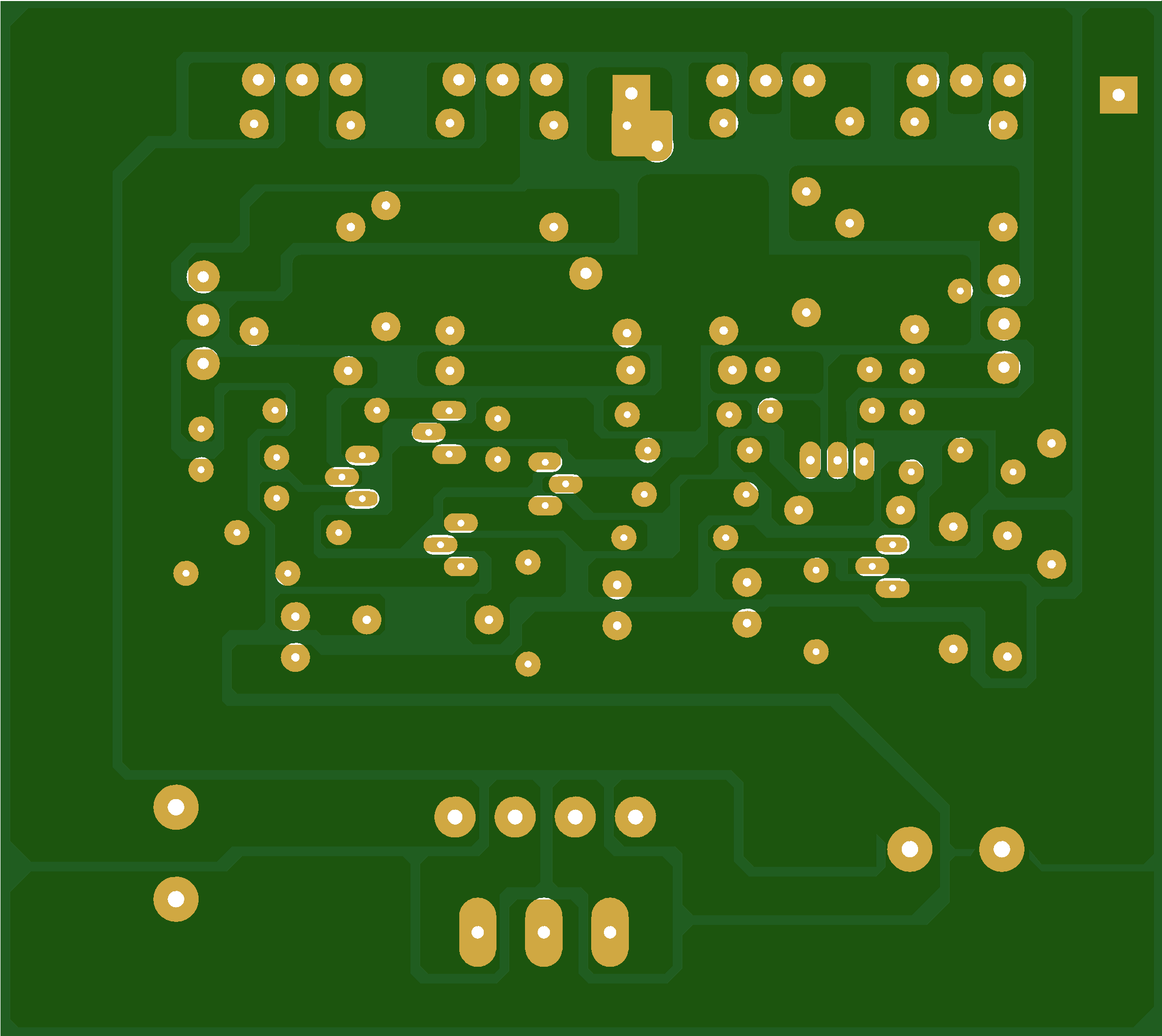

This is 200 watts mono audio amplifier board. this project can play upto 200 watts speaker easily.
i used two 2SC5200 & two 2SA1943 Transistors and 45-0-45 transformer for this project
Materials for the Project
4Pcs. 2.2 Ohm 1/2W Resistance
2Pcs. 100 Ohm 1W Resistance
1Pcs. 10 Ohm 2W Resistance
2Pcs. 4.7K 1/2W Resistance
1Pcs. 33 Ohm Resistance
3Pcs. 4007 Diode
3Pcs. 150 Ohm Resistance
1Pcs. 68K Resistance
1Pcs. 10K Resistance
1Pcs. 1K Resistance
2Pcs. 33K Resistance
2Pcs. 3.3K Resistance
1Pcs. 24v Zener Diode
2Pcs. 100pf Capacitor
2Pcs. 470pf Capacitor
1Pcs. C1815 Transistor
2Pcs. C2229 Transistor
2Pcs. 2N5401 Transistor
1Pcs. 470Kpf Capacitor
1Pcs. 100Kpf Capacitor
2Pcs. 47uf100v Capacitor
1Pcs. TIP42C Transistor
4Pcs. 0.33 Ohm 5W Resistance
1Pcs. A1941 Transistor
1Pcs. C5198 Transistor
2Pcs. 2SA1943 Transistor
2Pcs. 2SC5200 Transistor
1Pcs. D10XB60 Bridge Rectifier
2Pcs. 4700uf80v Capacitor
1Pcs. 10 Ohm 5W Resistance with 5uH inductor coil
if you want to make this project please watch the video carefully
